Product Description:
Z201 Series Long Range Multi Sensor Thermal Camera integrates HD daylight camera, uncooled thermal camera, gyro stabilization, intelligent analysis, and precise electronic control. It is designed for ship /shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long distance detection system, which can adapt to all-weather, all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 10 km.
To summarize, the Long-Distance Thermal Camera is a cutting-edge thermal imaging device that combines high resolution, versatile PTZ thermal sensor technology, extensive spectral range, and a wide tilt capability into a lightweight and durable package. Its ability to deliver clear and accurate thermal images over long distances makes it an invaluable tool across a broad spectrum of industries and applications. With this camera, users gain a powerful advantage in detecting heat signatures, enhancing security, and improving operational effectiveness in any environment.
Features:
1.Gyro stabilization: The two-axis gyro stabilization structure design effectively isolates the disturbance of the optical system caused by carriers such as vehicles and ships, and always maintains a high degree of image and video stability.
2. Intelligent analysis: Support target intrusion detection, motion detection and other abnormal behavior detection, support target classification and identification, support hot spot alarm, radar linkage, 3D zoom positioning and other functions.
3. Self-diagnosis and self-recovery: support life-cycle management, fault self-checking, front-end storage, resuming transmission after disconnection, memory after power failure, remote restart/upgrade.
4. Environmental adaptability: high-strength aluminum alloy material, internal and external double-layer three-proof technology, IP67 protection, rain-proof, dust-proof, anti-corrosion, anti-electromagnetic interference
Technical Parameters:
| Model | HP-Z201-LFZ |
| Detection | Thermal: Vessel: 10km; Vehicle: 3km; Human:1.2km |
| Daylight: Vessel: 20km; vehicle:5km; Human: 2.5km |
| Thermal Camera System |
| Detector | Uncooled sensor |
| Pixel size | 12μm |
| Resolution | 640*512 resolution (1280*1024 resolution for option) |
| NETD | 40MK |
| Lens | 25~100mm |
| Zoom | 4X optical zoom, 8X digital zoom |
| Lens control | Electric zoom; manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes |
| Image process | SDE digital image enhancement technology, enhance the details of the image, support 255 enhancement adjustment |
| Pseudo-color | 16 kinds of pseudo-color images, hot black / hot white two polarities |
| Image parameters | AGC automatic gain control, brightness, contrast |
| Digital zoom | 1x~8X continuous digital zoom, support global synchronous display |
| Range Scale | Support range scale to measurement the distance |
| Strong light protection | Support anti-sun damage |
| Daylight Camera System |
| CMOS | Ultra-low illumination starlight CMOS |
| Low Illumination | Color: 0.005lux, black/white: 0.001 lux |
| Lens | 6mm~210mm, 35X zoom |
| Image process | Support white balance, electronic shutter, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, WDR, heat wave drift suppression |
| Defog | Support |
| Audio/Video |
| Thermal Resolution | Support: 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 |
| Daylight Resolution | Support:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 |
| Video encoding | H.265/H.264/MJPEG |
| Video bit rate | 32Kbps～16Mbps |
| OSD setting | Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent Functions |
| Intelligent analysis | support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function |
| Auto Track | Support |
| Enhanced Features |
| Distance measurement | Support passive distance measurement; support optional laser distance measurement. |
| Anti-Sunburn | Support |
| Temperature correction | A thermalization design, image clarity is not affected by temperature |
| Disconnection renewal | Support |
| Power failure memory | Support can restore the position before power failure, preset point state, cruise state, line sweep state |
| Web access | support WEB full function configuration, remote online upgrade |
| Pan Tilt |
| Structure | Dome model, wind resistance, strong anti-shake, can resist 12-level strong wind |
| Gyro stabilization | two-axis gyro stabilization |
| Rotation | N*360°in horizontal, -90~+90 in pitch |
| Rotation Speed | 0.01°～90°/s in horizontal, 0.01°～90°/s in pitch |
| Acceleration | 120°/s2 (horizontal and pitch) |
| Positioning accuracy | ≤ 0.02° |
| Preset | 3000 |
| Gyro stabilization | Support, two axis gyro stabilization |
| Interface |
| Network interface | RJ45 |
| Network Protocol | Support HTTP,HTTPS,FTP,SMTP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,ICMP,DHCP；ONVIF,GB28181 and so on |
| Physical interface | alloy waterproof aviation plug |
| Others |
| Power supply | DC24V with power adapter |
| Power consumption | Normal: ≤ 150W; Peak: ≤ 400W |
| Working temperature | -40 ~+ 60℃ |
| Storage temperature | -45 ~+ 70℃ |
| Humidity | <90% |
| Ingress protection | IP67 |
| Weight | ≤ 20kg |
| Dimension | 280mm*400mm |
| Display and Monitor |
| Display | 1.Screen: 10 inch, 16:9 |
| | 2.Resolution: 1920*1080 |
| Function | FOV/Focus/Video/PIP/Self-checking/Target check/Auto track/Gyro stabilization/Manual track/ |
| Interface | 1. Communication: 2ch RS422;2 channel USB 2. Video: RJ45 |
| Dimensions/Weight | Dimensions: 300*260*65mm Weight: 5kg |
Applications:
Border/Costal defense, harbor, oil field, river lane, airport, safe city
Overall, the Hope-Wish HP- Long Range Thermal CameraThermal Imaging Camera combines cutting-edge thermal sensor technology with robust design and extensive operational features. Whether for security, rescue, or industrial monitoring, this product delivers unparalleled long-distance thermal imaging performance, making it a vital tool across numerous demanding scenarios.

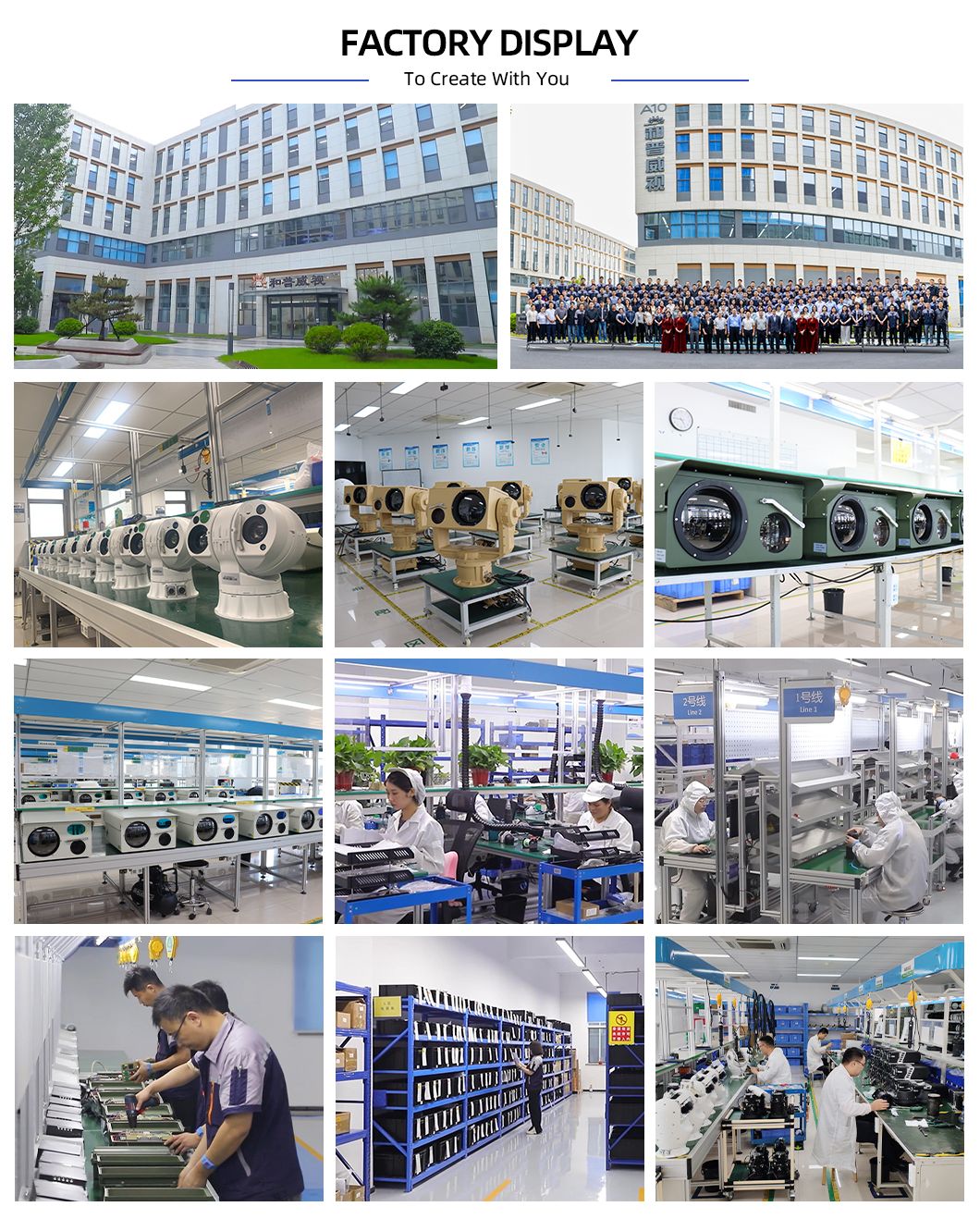

Company:
